Single Garage

All-weather

Easy to clean

Indelible

Worry free assembly

Limited 10-year warranty

Color

Share:

Description

Excellent durability using steel, stainless steel, aluminum alloy, etc.
The product adopts a very stylish design.
The snow resistant grade of the product is divided into general type, multiple snow type, and heavy snow type.
The wind resistance of the product can reach 12 grades (120 km / h).

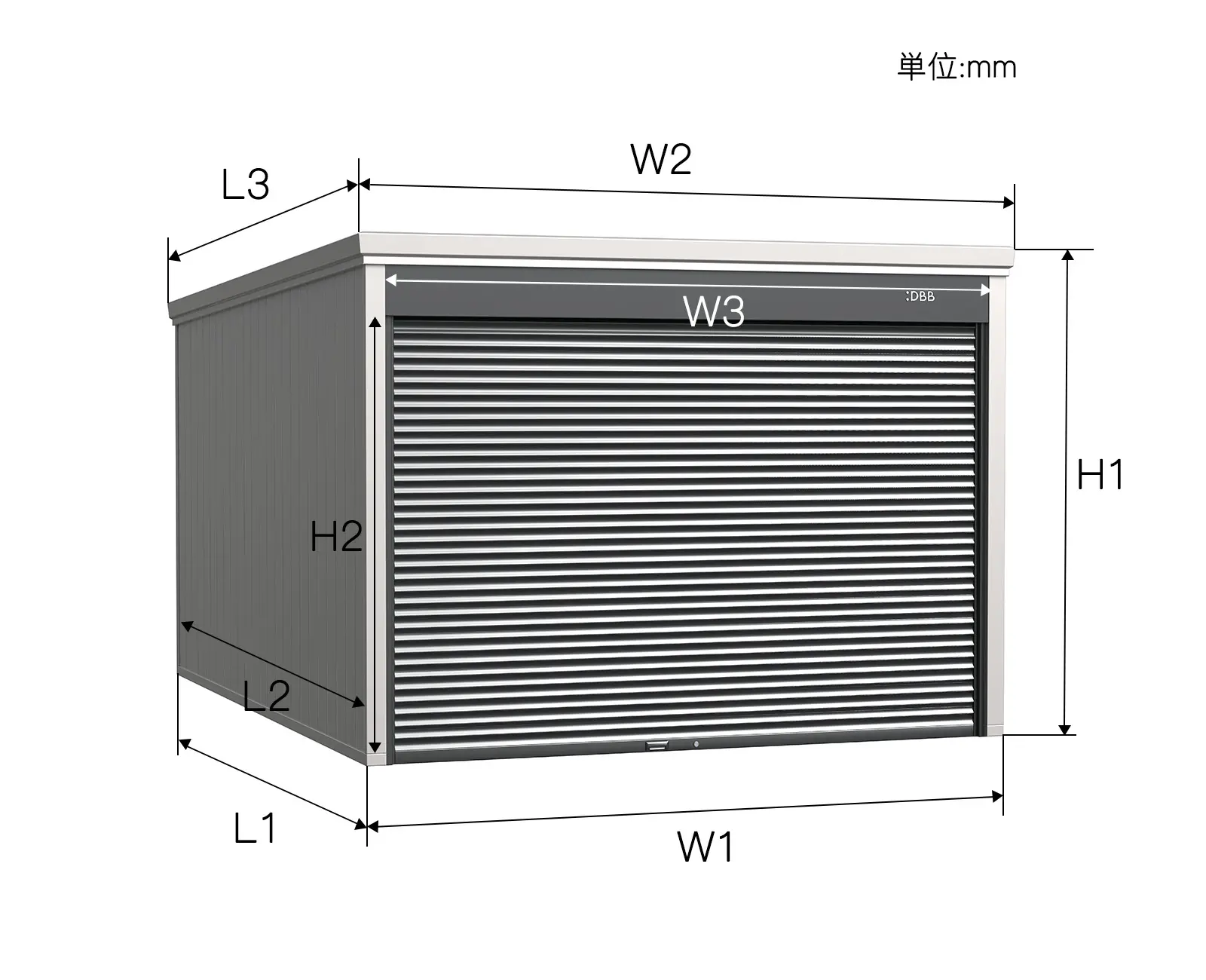

Specification

2130mm 2630mm 3130mm 3630mm

Unit：mm
Base size			Roof size			Cover an area		Door Size
W1	L1	L2	H1	W2	L3	M2	坪	W3	H2
2130	4275	4070	2360/2660	2290	4555	9.11	2.75	1842	1818/2118
2130	4775	4570	2360/2660	2290	5055	10.17	3.08	1842	1818/2118

Unit：mm
Base size			Roof size			Cover an area		Door Size
W1	L1	L2	H1	W2	L3	M2	坪	W3	H2
2630	4275	4070	2360/2660	2790	4555	11.24	3.40	2342	1818/2118
2630	4775	4570	2360/2660	2790	5055	12.56	3.80	2342	1818/2118
2630	5275	5070	2360/2660	2790	5555	13.87	4.20	2342	1818/2118
2630	5775	5570	2360/2660	2790	6055	15.19	4.59	2342	1818/2118
2630	6275	6070	2360/2660	2790	6555	16.50	4.99	2342	1818/2118

Unit：mm
Base size			Roof size			Cover an area		Door Size
W1	L1	L2	H1	W2	L3	M2	坪	W3	H2
3130	4275	4070	2360/2660	3290	4555	13.38	4.05	2842	1818/2118
3130	4775	4570	2360/2660	3290	5055	14.95	4.52	2842	1818/2118
3130	5275	5070	2360/2660	3290	5555	16.51	4.99	2842	1818/2118
3130	5775	5570	2360/2660	3290	6055	18.08	5.47	2842	1818/2118
3130	6275	6070	2360/2660	3290	6555	19.64	5.94	2842	1818/2118

Unit：mm
Base size			Roof size			Cover an area		Door Size
W1	L1	L2	H1	W2	L3	M2	坪	W3	H2
3630	4275	4070	2360/2660	3790	4555	15.52	4.69	3342	1818/2118
3630	4775	4570	2360/2660	3790	5055	17.33	5.24	3342	1818/2118
3630	5275	5070	2360/2660	3790	5555	19.15	5.79	3342	1818/2118
3630	5775	5570	2360/2660/2960	3790	6055	20.96	6.34	3342	1818/2118/2418
3630	6275	6070	2360/2660/2960	3790	6555	22.78	6.89	3342	1818/2118/2418

What DiBiBi Adhere To?

At DiBiBi, we adhere to the principles that ensure long-term value for our partners and customers worldwide.

Fashion Design

Our product design inherits French fashion aesthetics and is designed jointly with many designers around the world to form a unique product line.

Environment Protecting

The products are made of high-quality environment-friendly materials, which can be recycled and reused. There is no harm to human body and environment during the use of the product.

Convenient and Efficient

Our products are exquisitely designed and easy to assemble. Ordinary people can use simple household tools to complete the assembly, and the later period is basically maintenance-free.
