Rolling Shutter Door type Medium-Sized Storage Shed（Area＜10㎡）

All-weather

Easy to clean

Indelible

Worry free assembly

Limited 10-year warranty

Color

Share:

Description

The open space can be left or right.
High tension galvanized steel plate, perfect harmless coating, weatherproof, rust 200% hardness.
The product adopts a very stylish design.
Opening and closing doors smooth! On the left side of the door
Can be installed on the right side.
The roof drainage can be installed after drainage or predrainage.
The wind resistance of the product can reach 12 grades (120 km / h).
The snow resistant grade of the product is divided into general type, multiple snow type, and heavy snow type.
Products can be quickly assembled and can save time and effort.
With super size, you can store more items.

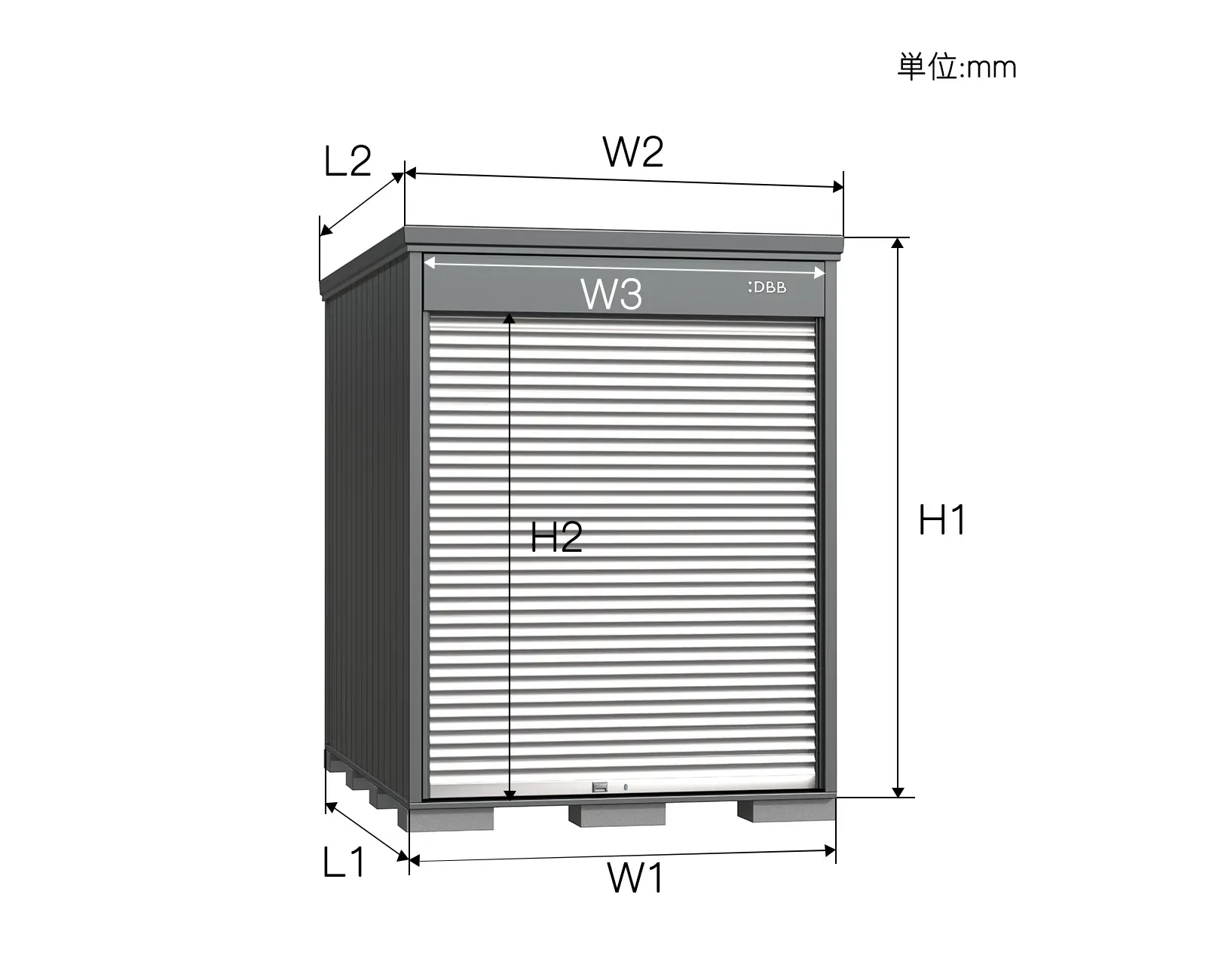

Specification

1370mm 1530mm 1790mm 2210mm 2630mm 3050mm

Unit：mm
Base size		Roof size			Cover an area		Door Size
W1	L1	H1	W2	L2	M2	坪	W3	H2

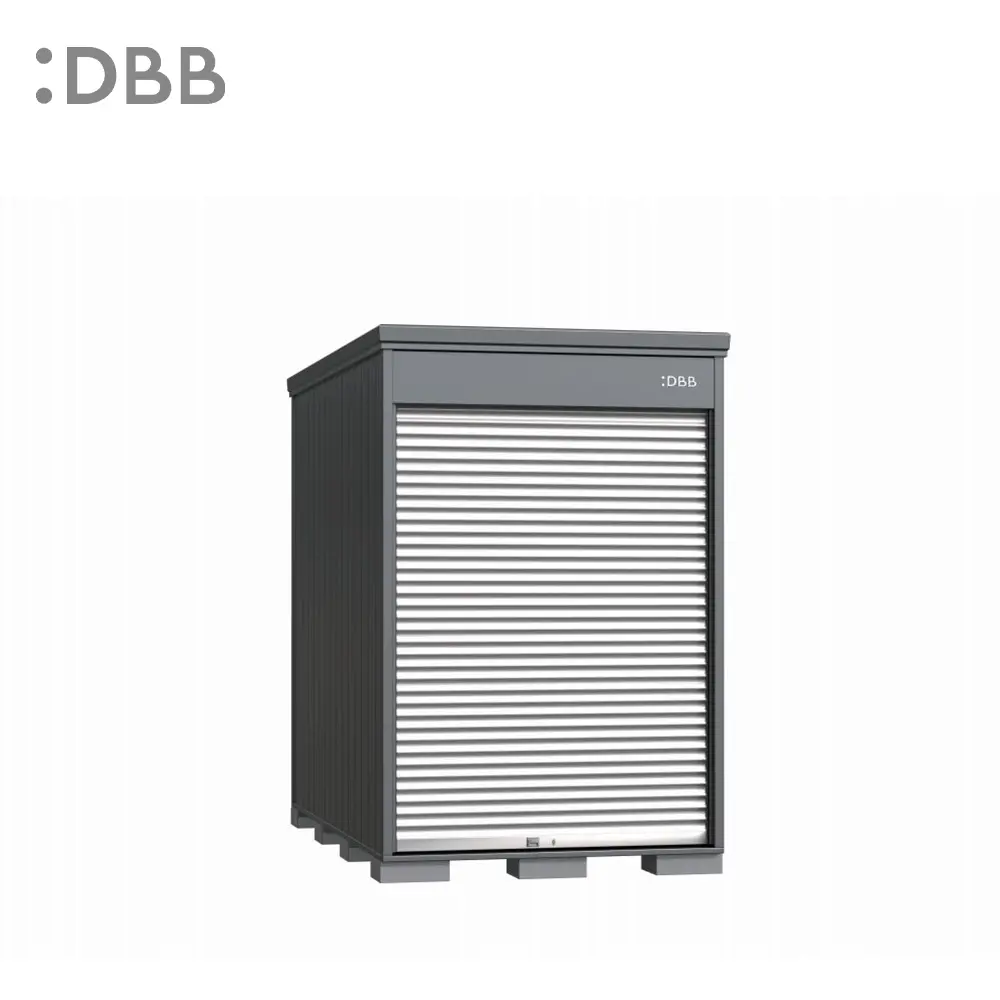

1370	2630	2385	1480	2810	3.60	1.09	1124	1948/1886

Unit：mm
Base size		Roof size			Cover an area		Door Size
W1	L1	H1	W2	L2	M2	坪	W3	H2

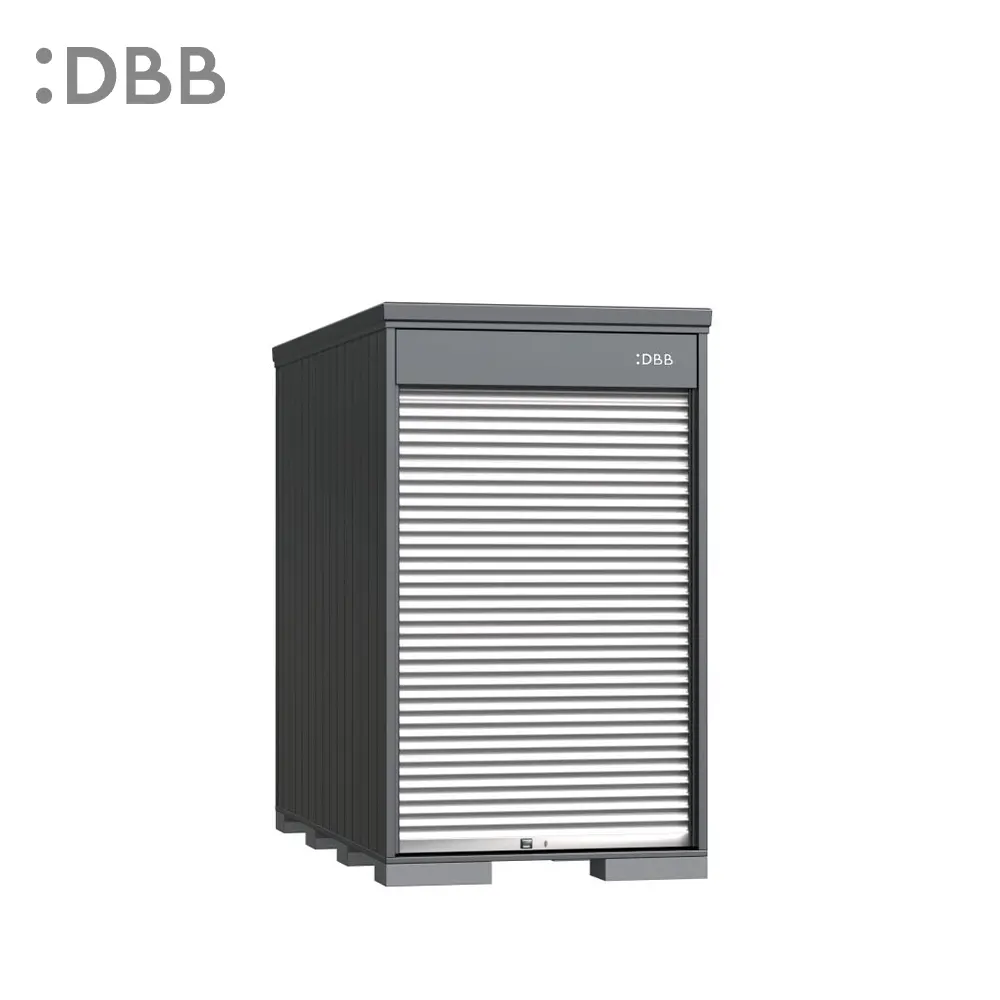

1530	2630	2385	1640	2810	4.02	1.22	1284	1948/1886

Unit：mm
Base size		Roof size			Cover an area		Door Size
W1	L1	H1	W2	L2	M2	坪	W3	H2

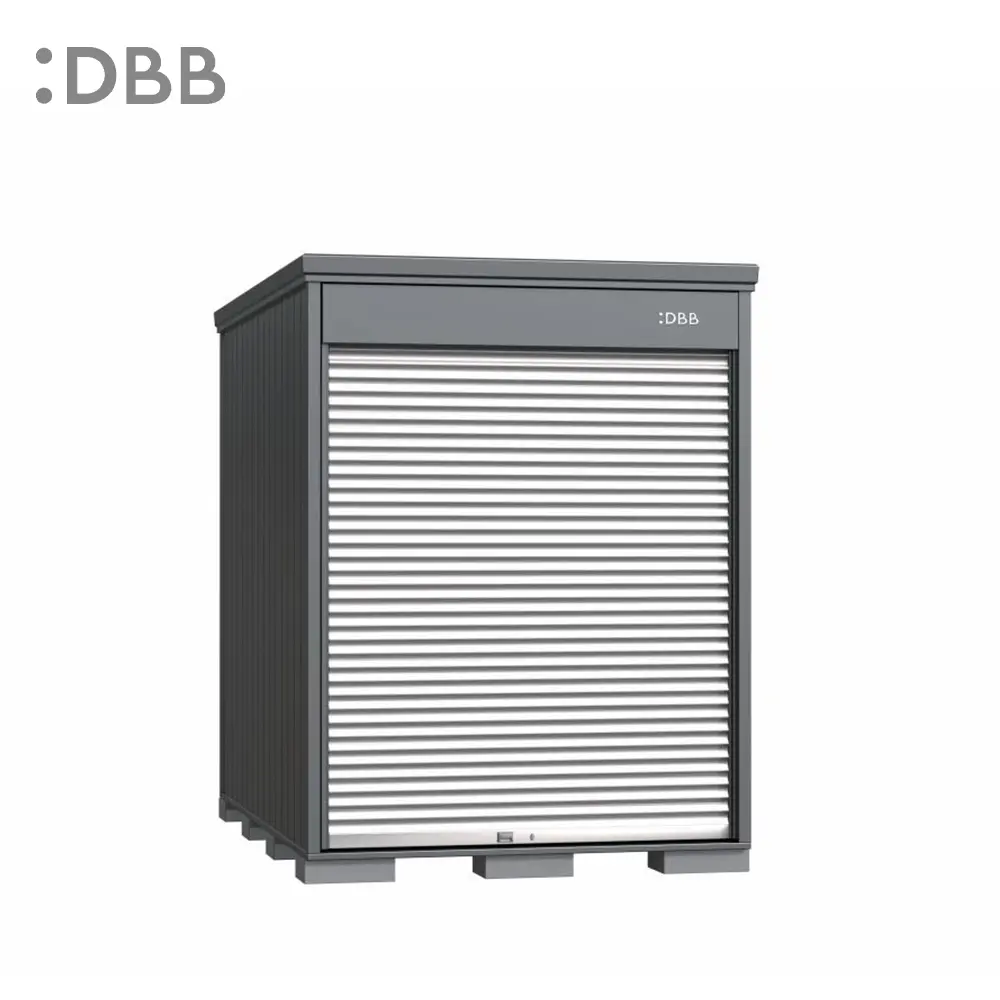

1790	2630	2385	1900	2810	4.71	1.42	1544	1948/1886

Unit：mm
Base size		Roof size			Cover an area		Door Size
W1	L1	H1	W2	L2	M2	坪	W3	H2

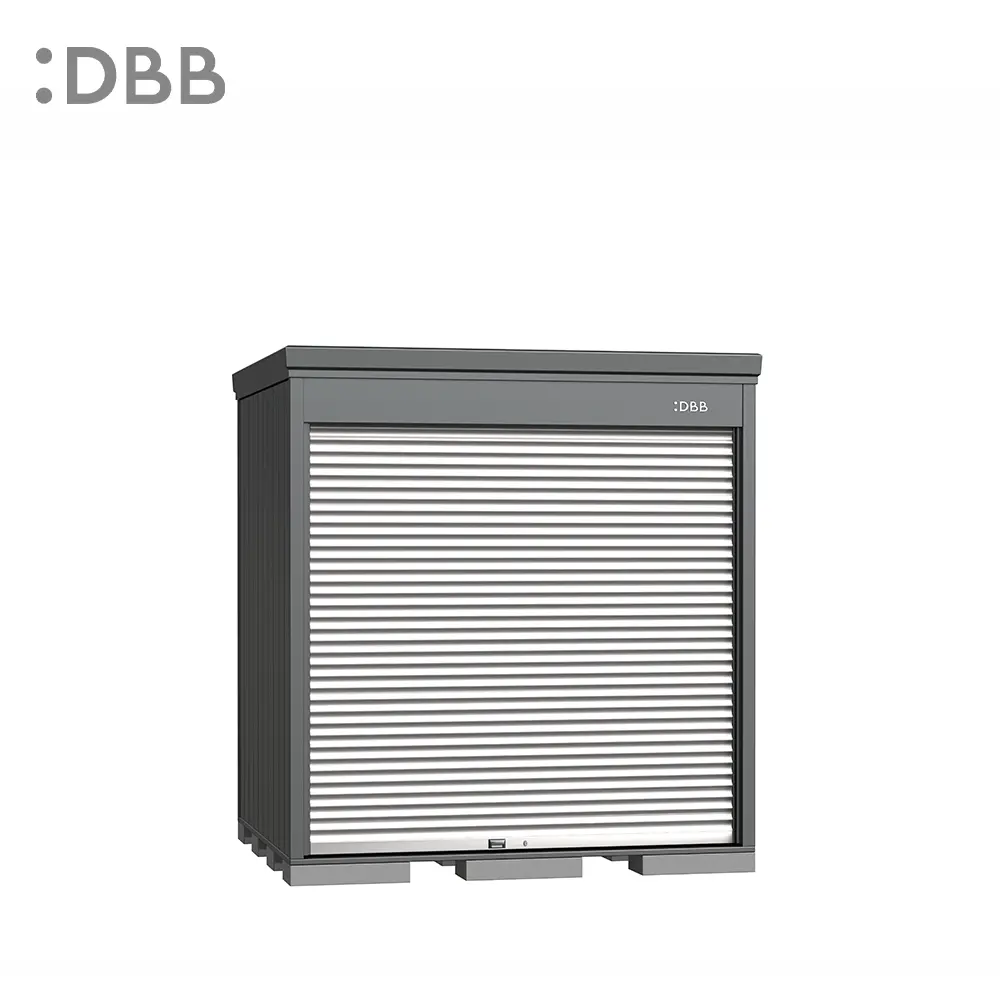

2210	1370	2385	2320	1550	3.03	0.92	1964	1948/1886
2210	1790			1970	3.96	1.20
2210	3050			3230	6.74	2.04

Unit：mm
Base size		Roof size			Cover an area		Door Size
W1	L1	H1	W2	L2	M2	坪	W3	H2

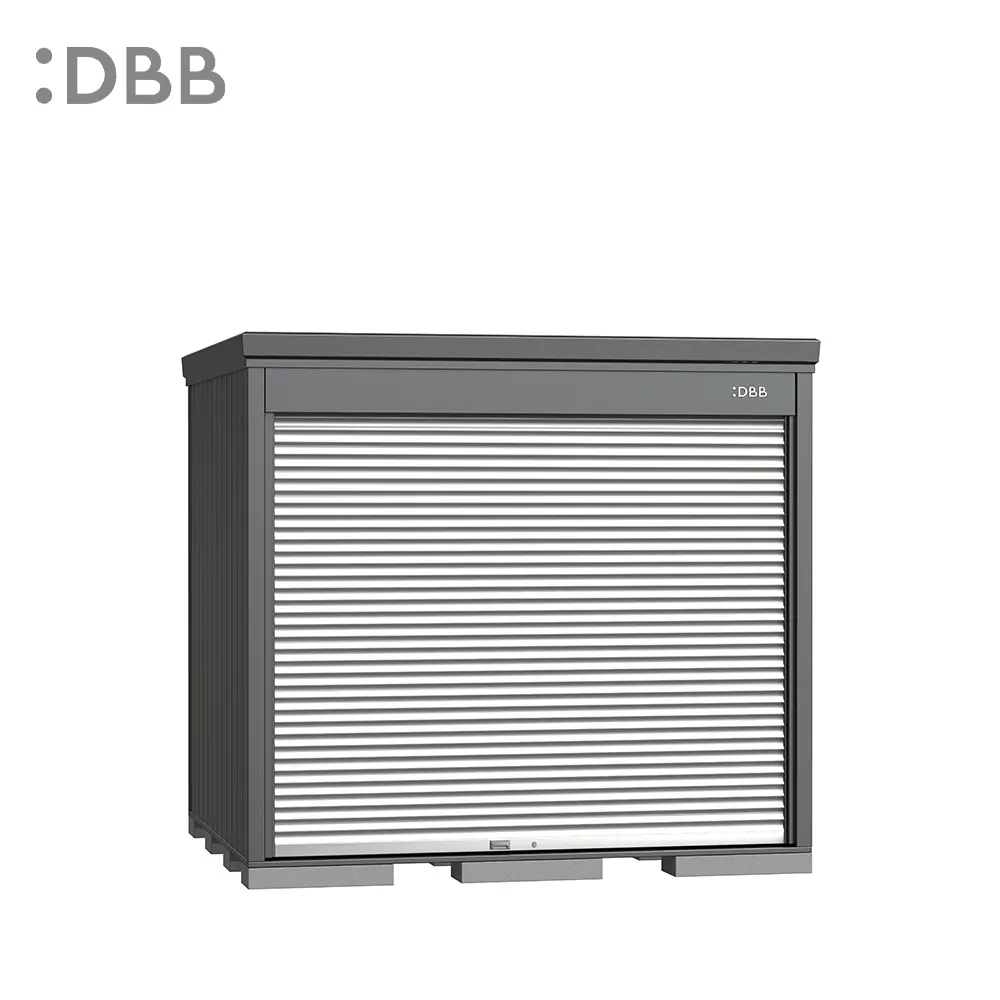

2630	1790	2385	2740	1970	4.71	1.42	2384	1948/1886
2630	2210			2390	5.81	1.76
2630	2630			2810	6.92	2.09
2630	3050			3230	8.02	2.43
2630	3470			3650	9.13	2.76

Unit：mm
Base size		Roof size			Cover an area		Door Size
W1	L1	H1	W2	L2	M2	坪	W3	H2
3050	2630	2385	3160	2810	8.02	2.43	2804	1948/1886
3050	3050			3230	9.30	2.81
3050	3470			3650	10.58	3.20

What DiBiBi Adhere To?

At DiBiBi, we adhere to the principles that ensure long-term value for our partners and customers worldwide.

Fashion Design

Our product design inherits French fashion aesthetics and is designed jointly with many designers around the world to form a unique product line.

Environment Protecting

The products are made of high-quality environment-friendly materials, which can be recycled and reused. There is no harm to human body and environment during the use of the product.

Convenient and Efficient

Our products are exquisitely designed and easy to assemble. Ordinary people can use simple household tools to complete the assembly, and the later period is basically maintenance-free.
